WHAT IS AN ANTENNA? 📶📡

Who invented antenna?

There's no easy answer to that question because radio evolved into a useful technology through the second half of the 19th century, thanks to the work of quite a few different people—both theoretical scientists and practical experimenters.

Who were these pioneers? Scottish physicist James Clerk Maxwell figured out a theory of radio around 1864, and Heinrich Hertz proved that radio waves really did exist about 20 years later (they were called Hertzian waves in his honor for some time afterward). Several years later, at a meeting in Oxford, England on August 14, 1894, English physicist, Oliver Lodge, demonstrated how radio waves could be used for signalling from one room to another in what he later described (in his 1932 autobiography) as "a very infantile kind of radio-telegraphy." Lodge filed a US patent for "electric telegraphy" on February 1, 1898, describing apparatus for "an operator, by means of what is now known as 'Hertzian-wave telegraphy' to transmit messages across space to any one or more of a number of different individuals in various localities..." Unknown to Lodge at that stage, Guglielmo Marconi was carrying out his own experiments in Italy around the same time—and ultimately proved the better showman: many people think of him as the "inventor of radio" to this day whereas, in truth, he was only one of a group of forward-thinking people who helped turned the science of electromagnetic waves into a practical, world-changing technology.

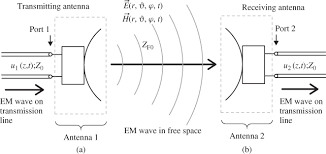

Imagine holding out your hand and catching words, pictures, and information passing by. That's more or less what an antenna (sometimes called an aerial) does: it's the metal rod or dish that catches radio waves and turns them into electrical signals feeding into something like a radio or television or a telephone system. Antennas like this are sometimes called receivers. A transmitter is a different kind of antenna that does the opposite job to a receiver: it turns electrical signals into radio waves so they can travel sometimes thousands of kilometers around the Earth or even into space and back. Antennas and transmitters are the key to virtually all forms of modern telecommunication. Let's take a closer look at what they are and how they work!

Imagine holding out your hand and catching words, pictures, and information passing by. That's more or less what an antenna (sometimes called an aerial) does: it's the metal rod or dish that catches radio waves and turns them into electrical signals feeding into something like a radio or television or a telephone system. Antennas like this are sometimes called receivers. A transmitter is a different kind of antenna that does the opposite job to a receiver: it turns electrical signals into radio waves so they can travel sometimes thousands of kilometers around the Earth or even into space and back. Antennas and transmitters are the key to virtually all forms of modern telecommunication. Let's take a closer look at what they are and how they work!

Transmitter and receiver antennas are often very similar in design. For example, if you're using something like a satellite phone that can send and receive a video-telephone call to any other place on Earth using space satellites, the signals you transmit and receive all pass through a single satellite dish—a special kind of antenna shaped like a bowl (and technically known as a parabolic reflector, because the dish curves in the shape of a graph called a parabola).

Often, though, transmitters and receivers look very different. TV or radio broadcasting antennas are huge masts sometimes stretching hundreds of meters/feet into the air, because they have to send powerful signals over long distances. (One of the ones I tune into regularly, at Sutton Coldfield in England, has a mast 270.5 metres or 887ft high, which is something like 150 tall people standing on top of one another.) But you don't need anything that big on your TV or radio at home: a much smaller antenna will do the job fine.

Waves don't always zap through the air from transmitter to receiver. Depending on what kinds (frequencies) of waves we want to send, how far we want to send them, and when we want to do it, there are actually three different ways in which the waves can travel: 1) By line of sight; 2) By ground wave; 3) Via the ionosphere.

Often, though, transmitters and receivers look very different. TV or radio broadcasting antennas are huge masts sometimes stretching hundreds of meters/feet into the air, because they have to send powerful signals over long distances. (One of the ones I tune into regularly, at Sutton Coldfield in England, has a mast 270.5 meters or 887ft high, which is something like 150 tall people standing on top of one another.) But you don't need anything that big on your TV or radio at home: a much smaller antenna will do the job fine.

Waves don't always zap through the air from transmitter to receiver. Depending on what kinds (frequencies) of waves, we want to send, how far we want to send them, and when we want to do it, there are actually three different ways in which the waves can travel: 1) By line of sight; 2) By ground wave; 3) Via the ionosphere.

As we've already seen, they can shoot by what's called "line of sight", in a straight line—just like a beam of light. In old-fashioned long-distance telephone networks, microwaves were used to carry calls this way between very high communications towers (fiber-optic cables have largely made this obsolete).

They can speed round the Earth's curvature in what's known as a ground wave. AM (medium-wave) radio tends to travel this way for short-to-moderate distances. This explains why we can hear radio signals beyond the horizon (when the transmitter and receiver are not within sight of each other).

They can shoot up to the sky, bounce off the ionosphere (an electrically charged part of Earth's upper atmosphere), and come back down to the ground again. This effect works best at night, which explains why distant (foreign) AM radio stations are much easier to pick up in the evenings. During the daytime, waves shooting off into the sky are absorbed by the lower layers of the ionosphere. At night, that doesn't happen. Instead, higher layers of the ionosphere catch the radio waves and fling them back to Earth—giving us a very effective "sky mirror" that can help to carry radio waves over very long distances.

How long does an antenna have to be?

The simplest antenna is a single piece of metal wire attached to a radio. The first radio I ever built, when I was 11 or 12, was a crystal set with a long loop of copper wire acting as the antenna. I ran the antenna right the way around my bedroom ceiling, so it must have been about 20–30 meters (60–100 ft) long in all!

Most modern transistor radios have at least two antennas. One of them is a long, shiny telescopic rod that pulls out from the case and swivels around for picking up FM (frequency modulation) signals. The other is an antenna inside the case, usually fixed to the main circuit board, and it picks up AM (amplitude modulation) signals. (If you're not sure about the difference between FM and AM, refer to our radio article.)

Why do you need two antennas in a radio? The signals on these different wave bands are carried by radio waves of different frequency and wavelength. Typical AM radio signals have a frequency of 1000 kHz (kilohertz), while typical FM signals are about 100 MHz (megahertz)—so they vibrate about a hundred times faster. Since all radio waves travel at the same speed (the speed of light, which is 300,000 km/s or 186,000 miles per second), AM signals have wavelengths about a hundred times bigger than FM signals. You need two antennas because a single antenna can't pick up such a hugely different range of wavelengths. It's the wavelength (or frequency, if you prefer) of the radio waves you're trying to detect that determines the size and type of the antenna you need to use. Broadly speaking, the length of a simple (rod-type) antenna has to be about half the wavelength of the radio waves you're trying to receive (it's also possible to make antennas that are a quarter of the wavelength, compact miniaturized antennas that are about a tenth the wavelength, and membrane antennas that are even smaller, though we won't go into that here).

The length of the antenna isn't the only thing that affects the wavelengths you're going to pick up; if it were, a radio with a fixed length of antenna would only ever be able to receive one station. The antenna feeds signals into a tuning circuit inside a radio receiver, which is designed to "latch onto" one particular frequency and ignore the rest. The very simplest receiver circuit (like the one you'll find in a crystal radio) is nothing more than a coil of wire, a diode, and a capacitor, and it feeds sounds into an earpiece. The circuit responds (technically, resonates, which means electrically oscillates) at the frequency you're tuned into and discards frequencies higher or lower than this. By adjusting the value of the capacitor, you change the resonant frequency—which tunes your radio to a different station. The antenna's job is to pick up enough energy from passing radio waves to make the circuit resonate at just the right frequency.

Important properties of antennas:-

Three features of antennas are particularly important, namely their directionality, gain, and bandwidth.

Directionality:-

Dipoles are very directional: they pick up incoming radio waves traveling at right angles to them. That's why a TV antenna has to be properly mounted on your home, and facing the correct way, if you're going to get a clear picture. The telescopic antenna on an FM radio is less obviously directional, especially if the signal is strong: if you have it pointed straight upward, it will capture good signals from virtually any direction. The ferrite AM antenna inside a radio is much more directional. Listening to AM, you'll find you need to swivel your radio around until it picks up a really strong signal. (Once you've found the best signal, try turning your radio through exactly 90 degrees and notice how the signal often falls off almost to nothing.)

Although highly directional antennas may seem like a pain, when they're properly aligned, they help to reduce interference from unwanted stations or signals close to the one you're trying to detect. But directionality isn't always a good thing. Think about your cellphone. You want it to be able to receive calls wherever it is in relation to the nearest phone mast, or pick up messages whichever way it happens to be pointing when it's lying in your bag, so a highly directional antenna isn't much good. Similarly for a GPS receiver that tells you where you are using signals from multiple space satellites. Since the signals come from different satellites, in different places in the sky, it follows that they come from different directions, so, again, a highly directional antenna wouldn't be that helpful.

Gain:-

The gain of an antenna is a very technical measurement but, broadly speaking, boils down to the amount by which it boosts the signal. TVs will often pick up a poor, ghostly signal even without an antenna plugged in. That's because the metal case and other components act as a basic antenna, not focused in any particular direction, and pick up some kind of signal by default. Add a proper directional antenna and you'll gain a much better signal. Gain is measured in decibels (dB), and (as a broad rule of thumb) the bigger the gain the better your reception. In the case of TVs, you get much more gain from a complex outdoor antenna (one with, say, 10–12 dipoles in a parallel "array") than from a simple dipole. All outdoor antennas work better than indoor ones, and window and set-mounted antennas have higher gain and work better than built-in ones.

Bandwidth:-

An antenna's bandwidth is the range of frequencies (or wavelengths, if you prefer) over which it works effectively. The broader the bandwidth, the greater the range of different radio waves you can pick up. That's helpful for something like television, where you might need to pick up many different channels, but much less useful for telephone, cellphone, or satellite communications where all you're interested in is a very specific radio wave transmission on a fairly narrow frequency band.
